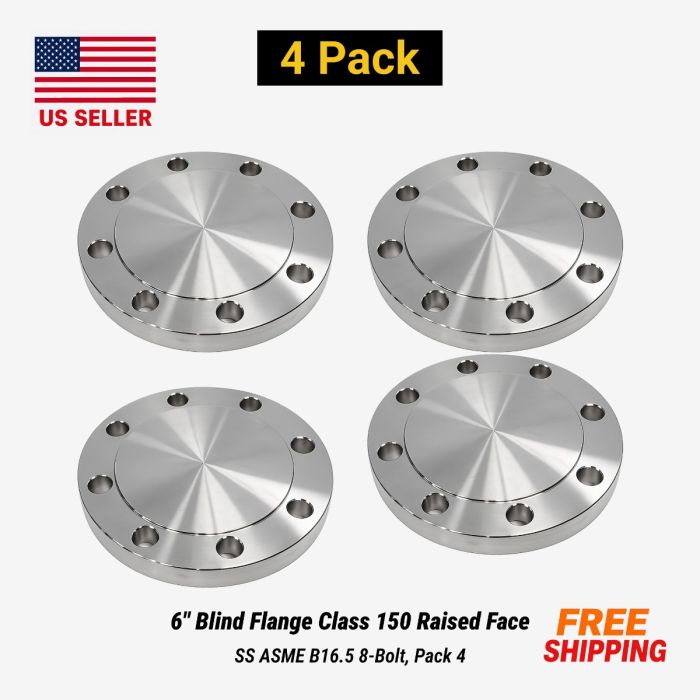

6" Blind Flange Class 150 Raised Face SS ASME B16.5 8-Bolt, Pack 4

6-Inch Blind Flange Class 150 Raised Face 316/316L Stainless Steel ASME B16.5

Seal pipelines and pressure vessel openings with confidence using this 6 Inch Blind Flange, precision machined to ANSI/ASME B16.5 standards for dependable performance in demanding industrial environments. Manufactured from premium F316/316L dual-certified stainless steel, this raised face blind flange delivers superior corrosion resistance, durability, and long-term reliability in chemical, marine, food-grade, and high-moisture applications.

The raised face (RF) sealing surface provides improved gasket compression for secure sealing performance in low to medium pressure systems. Its heavy-duty stainless steel construction offers excellent resistance to rust, chemicals, saltwater exposure, and harsh operating conditions, making it ideal for industrial process piping and pressure systems.

Designed for reliable system isolation, maintenance closures, and future pipeline expansion points, this blind flange is suitable for a wide range of commercial and industrial piping applications.

Key Features

• Manufactured from F316 / 316L stainless steel
• Precision machined to ANSI/ASME B16.5 standards
• 6 inch IPS blind flange design
• Class 150 pressure rating
• Raised Face (RF) sealing surface
• Excellent corrosion and chemical resistance
• Heavy-duty industrial construction
• Ideal for marine, chemical, and food-grade systems

Specifications

• Product Type: Blind Flange
• Pipe Size: 6 Inch IPS
• Pressure Class: 150
• Face Type: Raised Face (1/16" RF)
• Material: F316 / 316L Stainless Steel
• Standard: ANSI/ASME B16.5
• Bolt Holes: 8
• Outside Diameter: 11 Inches

Applications

• Chemical processing systems
• Oil & gas pipelines
• Water treatment facilities
• Food & beverage processing
• Pulp and paper industry
• Marine and offshore systems
• Industrial pressure vessels

Package Includes

• 4 x 6-Inch Class 150 Raised Face Blind Flange 316/316L Stainless Steel
